WZ1000 Zero Turn Mower

WZ1000 Commercial Zero Turn Mower

Now starting at $69,899

Price may vary by dealer/location, does not include taxes, freight, or setup fees.


*Limited Quantity In Stock and Available for Immediate Shipment*




  WZ1000 Flex Deck Zero Turn Wide Area Mower

  • 49HP Kubota® Tier 4 3-cylinder, turbo-charged, liquid-cooled diesel engine
  • 120" cutting width is 15% more productive than a 104" zero turn mower
  • Five 25" flex decks with up to 24° of total up/down motion
  • 24.5" Side reach, reduces hand mowing and trimming near ponds, ditches or banks.
  • Up to 8.73 acres per hour
  • Electric quick-lift deck with 94" transport width
  • Tool-free deck height adjustment from 1" to 4-1/2"
  • Side, rear, and mulching discharge capabilities (Mulch kit included)
Request Info Specs Easy Financing! No Payments for 90 Days Built in the USA Warranty Where to Buy
Overview

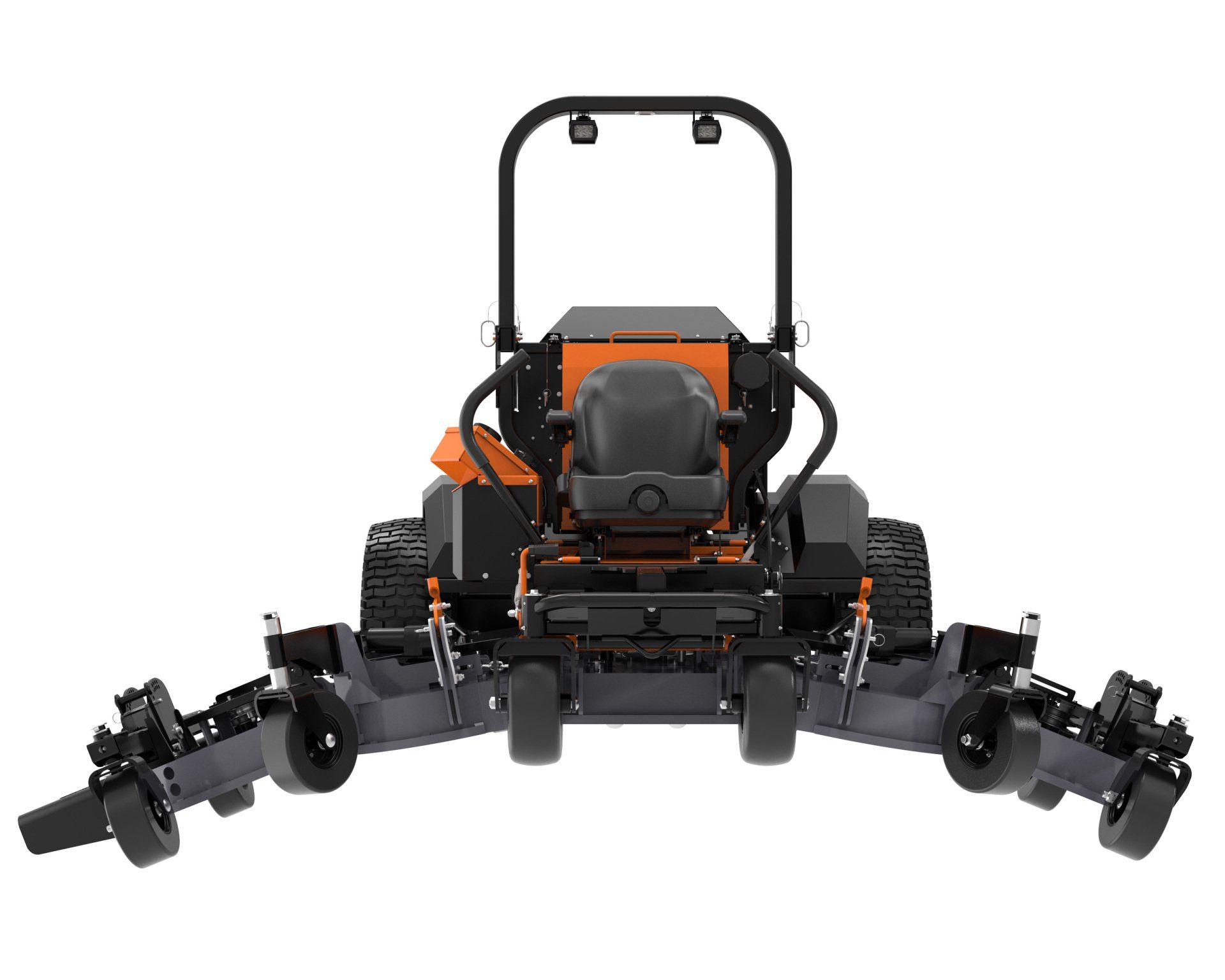

Featuring a massive 120” cutting width, five 25" flex decks, and zero turn maneuverability, the WZ1000 is the world’s largest zero turn mower with the accuracy of five small push mowers. Built in the USA, the WZ1000 commercial zero turn mower fits the production needs of commercial landscapers, lawn care professionals, sports fields, and golf courses.

The WZ1000 includes five 25" independently flexing decks with up to 24° of total up/down flex for superior cut quality in even the most challenging contours and valleys. With the 120” cutting width, zero turn accuracy, and up to 10 mph speed, the WZ1000 is 15% more productive than a 104” zero turn mower and 67% more productive than a 72” zero turn mower.

Powered by a 49HP turbo-charged Tier 4 diesel engine, the WZ1000 zero turn mower features quick-lift electric decks for easy transport or storage, tool-free deck height adjustment for quick on-site height changes, and 17-gallon fuel capacity for less fueling downtime. In addition, Lastec’s patented belt-driven decks require minimal maintenance and provide unmatched fuel efficiency compared to hydraulically driven rotary mowers that often cost 50% more to own and operate.

Premium Cut Quality

Lastec flexing decks provide a premium quality of cut throughout the entire width of cut from wing to wing not found anywhere else in the industry. Lastec individual flexing decks cut areas that normally require hand trimming, provide a lower cut without scalping, mow through trenches and valleys in a single pass, and approach contours from any angle without scalping, missing grass, or damaging turf.

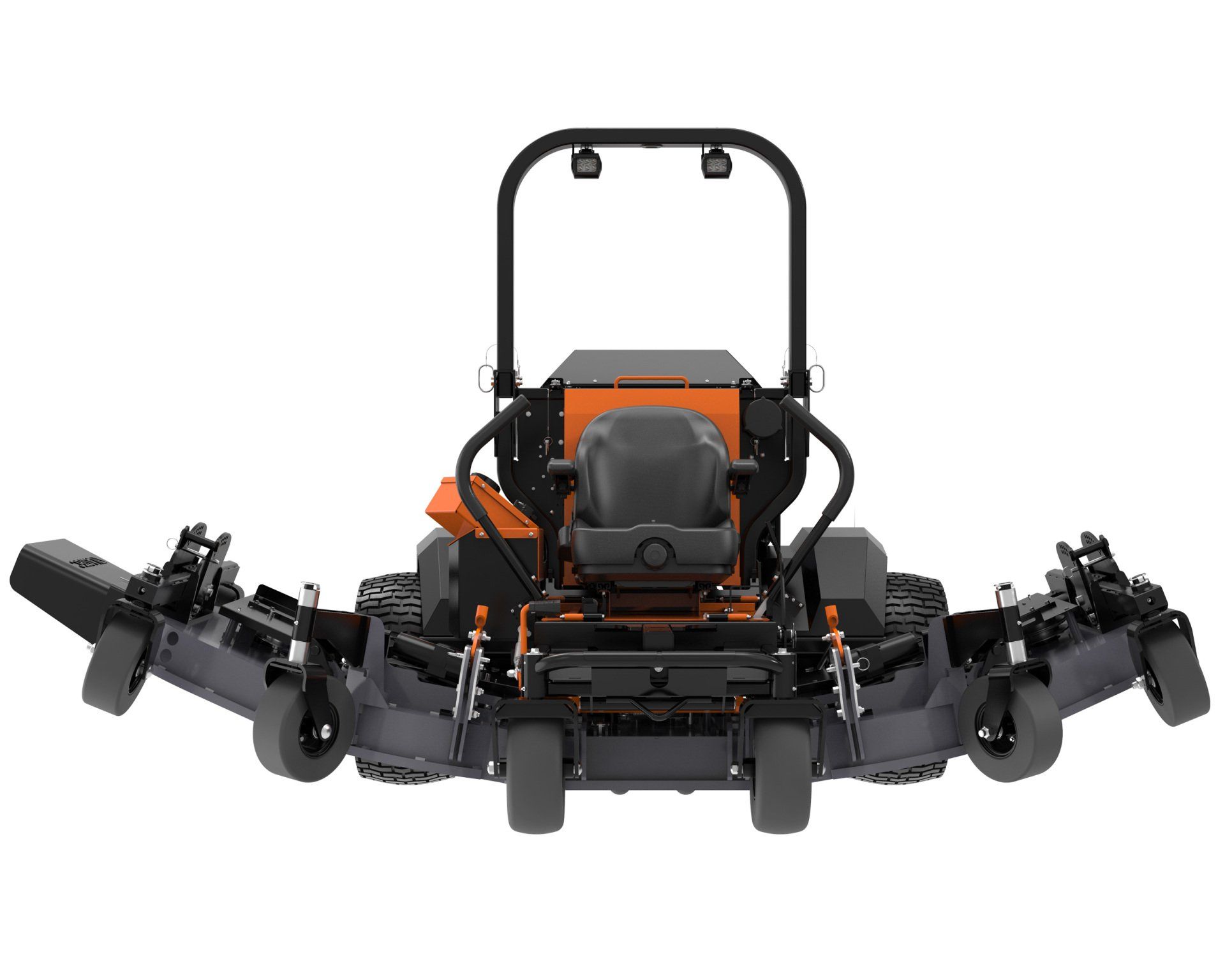

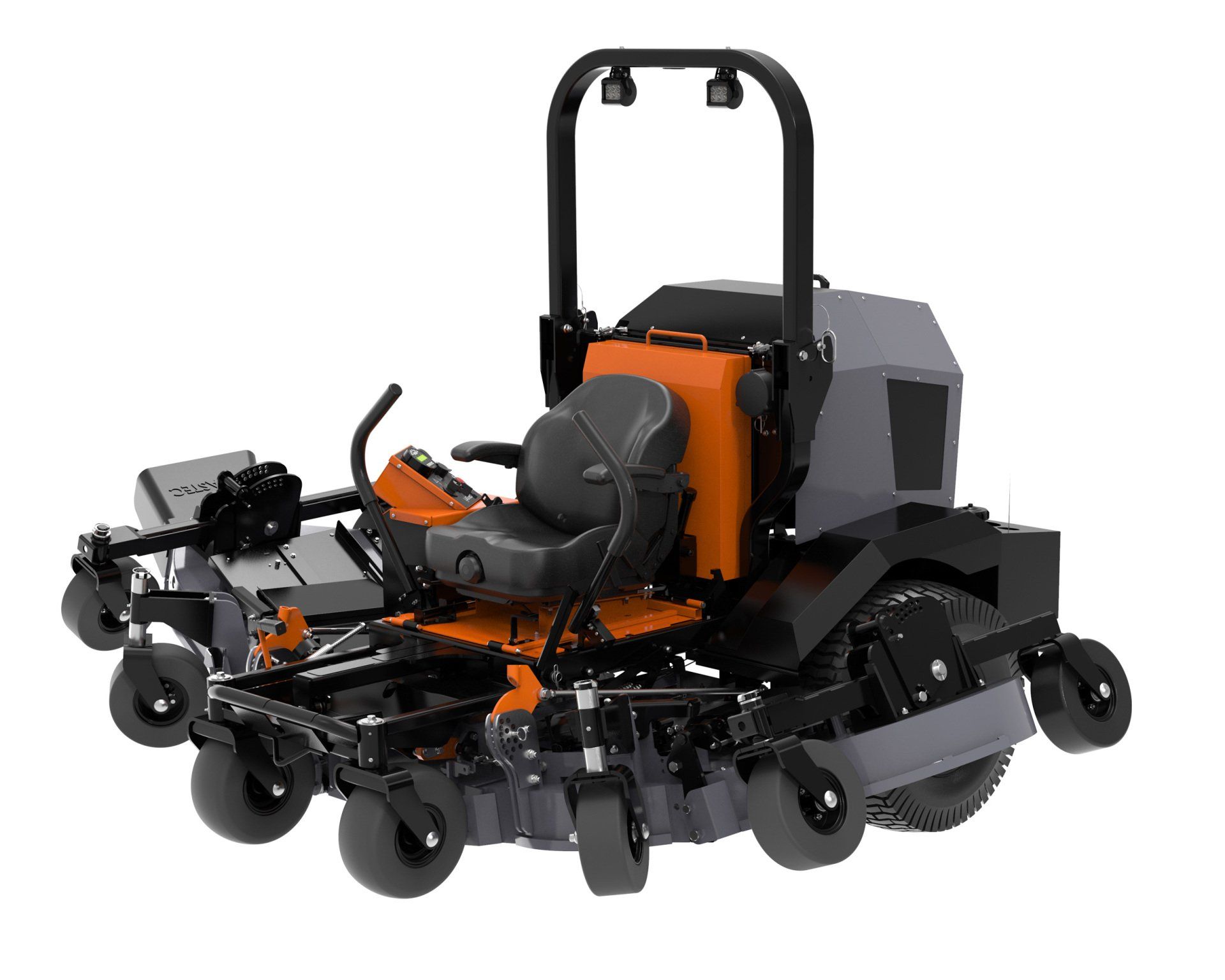

Lastec Articulating Mower Deck Up

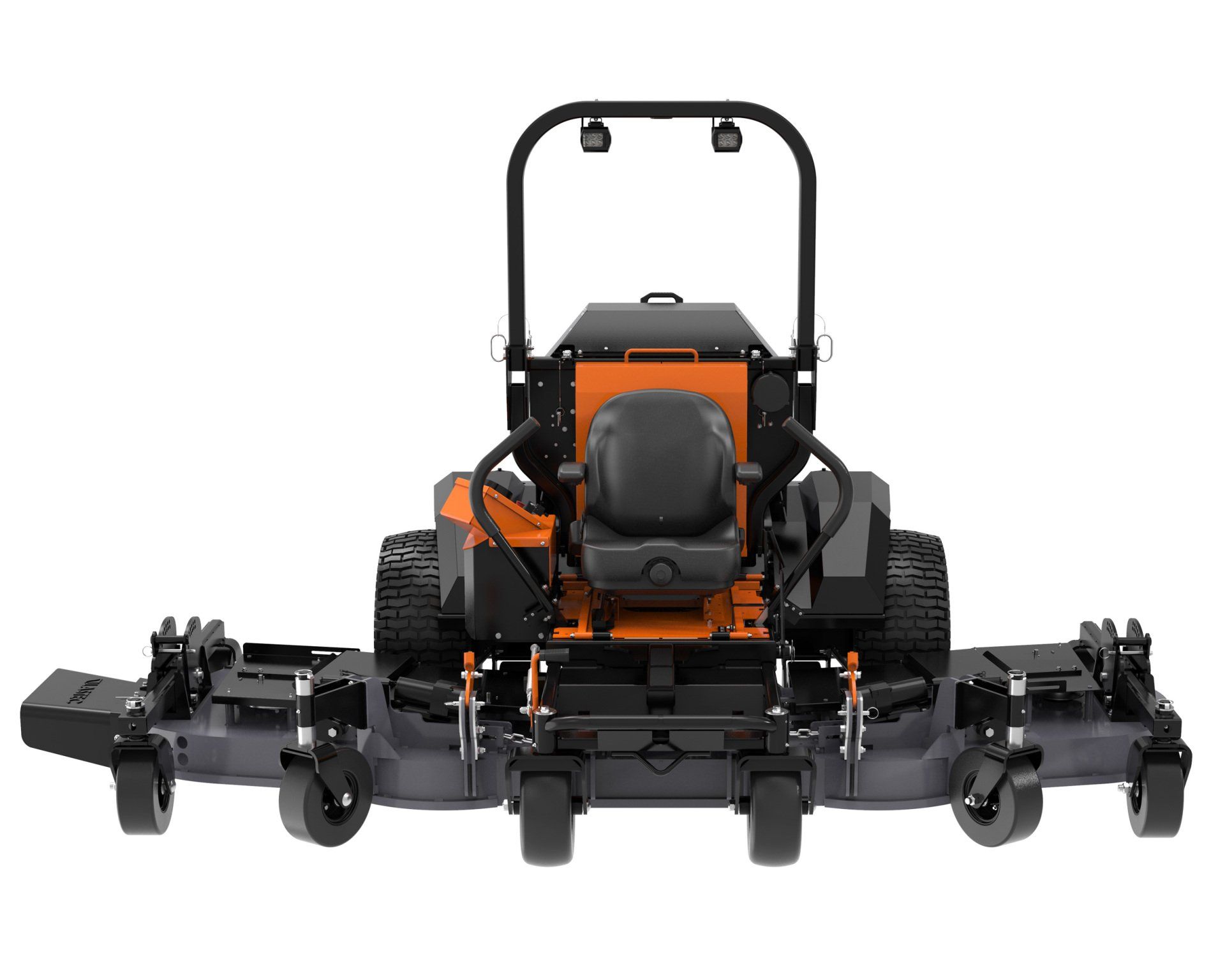

Lastec Articulating Mower Deck Flat

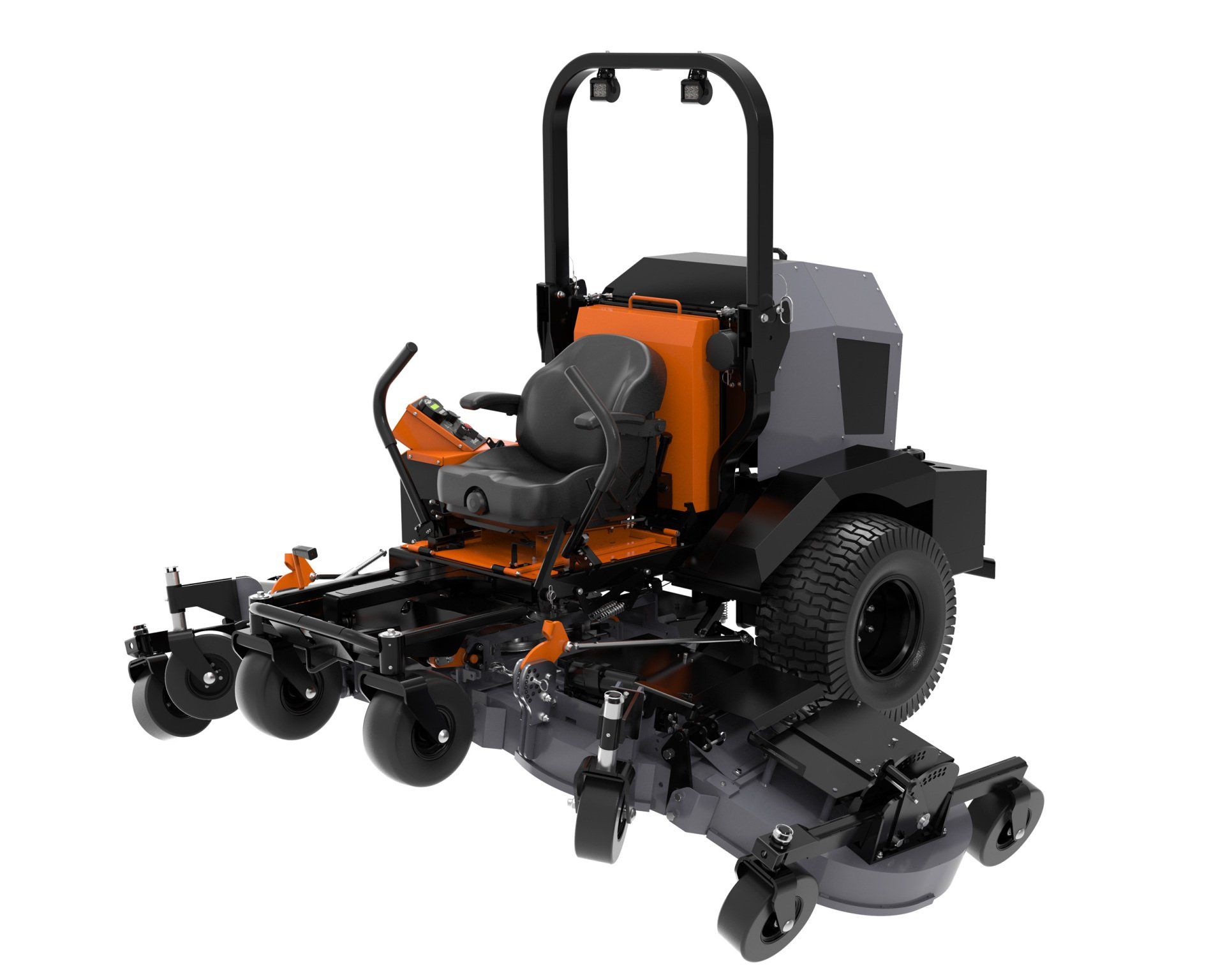

Lastec Articulating Mower Deck Down
Every Lastec mower features three, five, or seven 21” or 25” independently flexing decks that include up to 24° of  total up/down motion for the premium cut quality of several small push mowers in even the most challenging contours and valleys. In addition, Lastec’s center decks include a pivot in the center capable of up to 3° of up/down motion.
Accessories

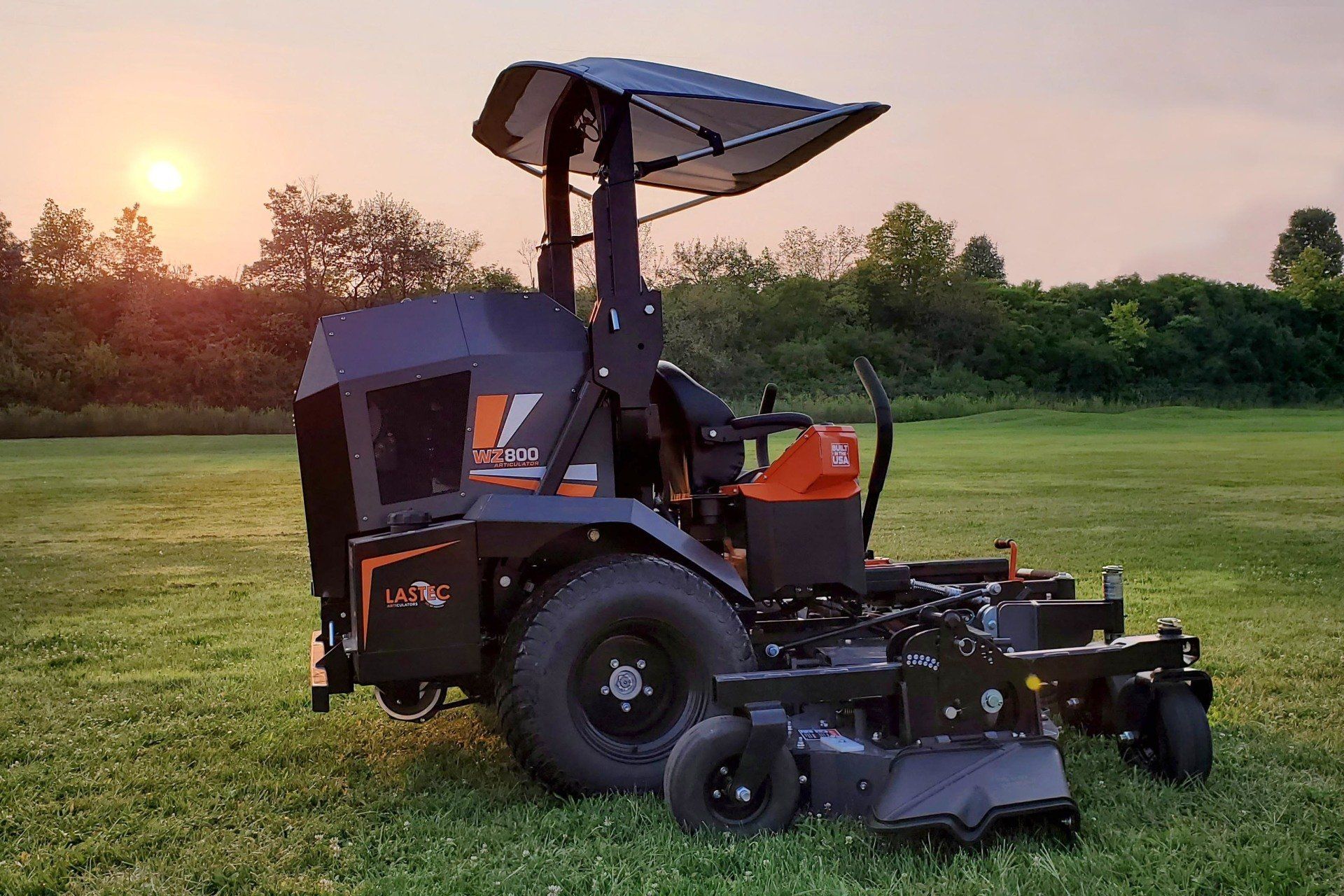

We got you covered. Canvas Canopy now available!

When you need to avoid the sun’s heat and damaging rays, our sunshades s are more than a convenience, they’re a necessity. Designed to install quickly, with no drilling. And they’re built with quality materials that repel the sun’s harmful UV rays for years to come.


Standard Features:

  • Provides sun protection for operating comfort
  • Tough, acrylic-coated polyester
  • Lightweight, durable aluminum frame
  • Clamps to roll bar without drilling

Fits WZ1000, WZ800, WZ600, WZ400. Lastec part #067086. Call dealer for pricing.

Additional Accessories:

WZ1000 120" WIDTH OF CUT

P701 High-Lift Blade

P849 Low-Lift Blade

P848 Gator Mulching Blade

063266 Ultra Low-Lift Blade

048898 Anti-Scalp Blade Disc

Features
Specifications
Download Specs

DIMENSIONS

Length  92”

Width (mowing) 138”

Width (transport)  94”

Height (ROPS up) 82”

Height (ROPS down) 57”

Unit Weight 3,395lbs

Wheelbase 54”

Rear Track 60”

Frame Construction Fully Welded, 1.5"x3"x3-16" Structure Tubing


ENGINE

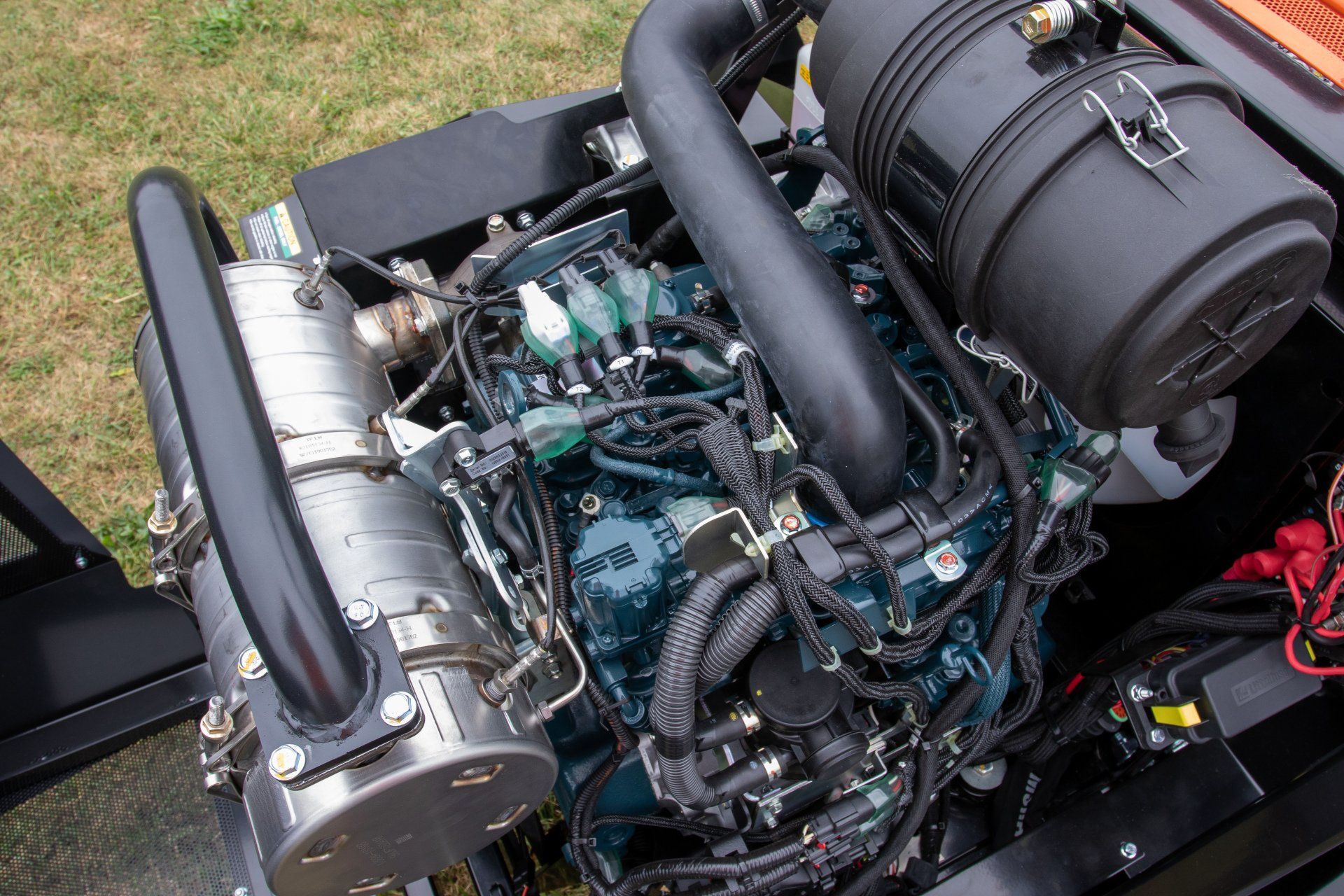

Type Kubota® D1803-CR-TE4B 3-cylinder,  turbo-charged, liquid-cooled diesel

Emissions Level EPA Tier 4 final, stage IIIB

Rated Horsepower 49.6 hp (SAE J1995)

Displacement 111.4 cu. in.

Engine Controls Digital

PTO Warner 300 ft-lb Clutch w/ Magnetic Brake

Air Cleaner 6” dual element, dry cartridge

Cooling System Type Pressurized radiator, forced circulation with water pump

Alternator Capacity 12V, 60A

Oil System Type Forced lubrication by trochoid pump

Oil Capacity 1.85 U.S. gal

Oil Filter Type Full-flow, replaceable spin-on type

Fuel Capacity 13.5 U.S. gallons


TRACTION SYSTEM

Max Forward Speed 10 mph

Max Reverse Speed 3 mph

Wheel Motors Parker 477cc TF Series

Drive Pumps Hydro-Gear* PW Series

Front Tires Two 13 x 6.5-6, smooth, semi-solid

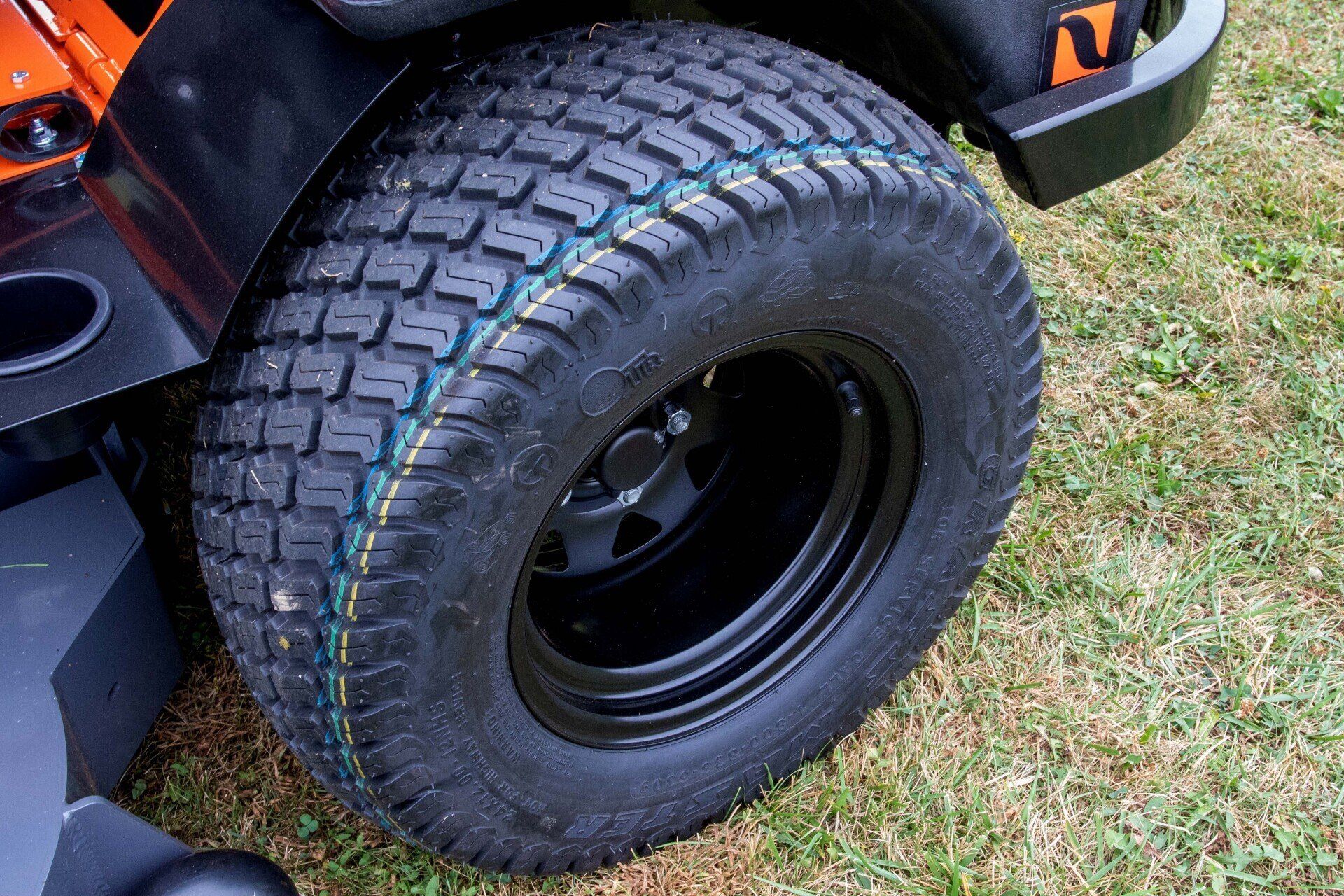

Rear Tires Two 26 x 12-12, 6-ply, turf tread

Parking Brake Two mechanical drum-type on rear wheels

Steering Dual-lever hydrostatic differential type with rear wheels

Hydraulic Oil Filters Full-flow, replaceable spin-on type

Hydraulic Oil Cooler Pressurized, forced-air


CUTTING DECK SYSTEM

Cut Width 120”

Cut Width (Feet) 10' (3.048m)

Discharge Options Side, Rear, and Mulching Discharge Capabilities

Curb clearance in inches 4.5"

Blade Spindles 3- Cast Steel Spindle Assemblies, Utilizing 3 Sealed Bearings Each

Blades Five 25” High Lift

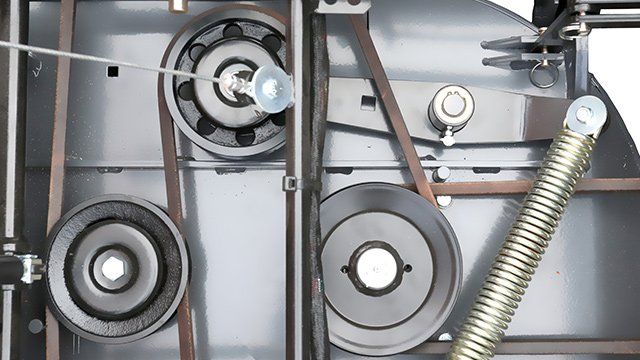

Belts Double Envelope Kevlar Main Drive & Deck Belts

Deck Segments Five articulating, 7ga welded construction

Deck Construction 3/16"x1/2" (4.76mmx127mm) Solid Steel Bar Leading Edge

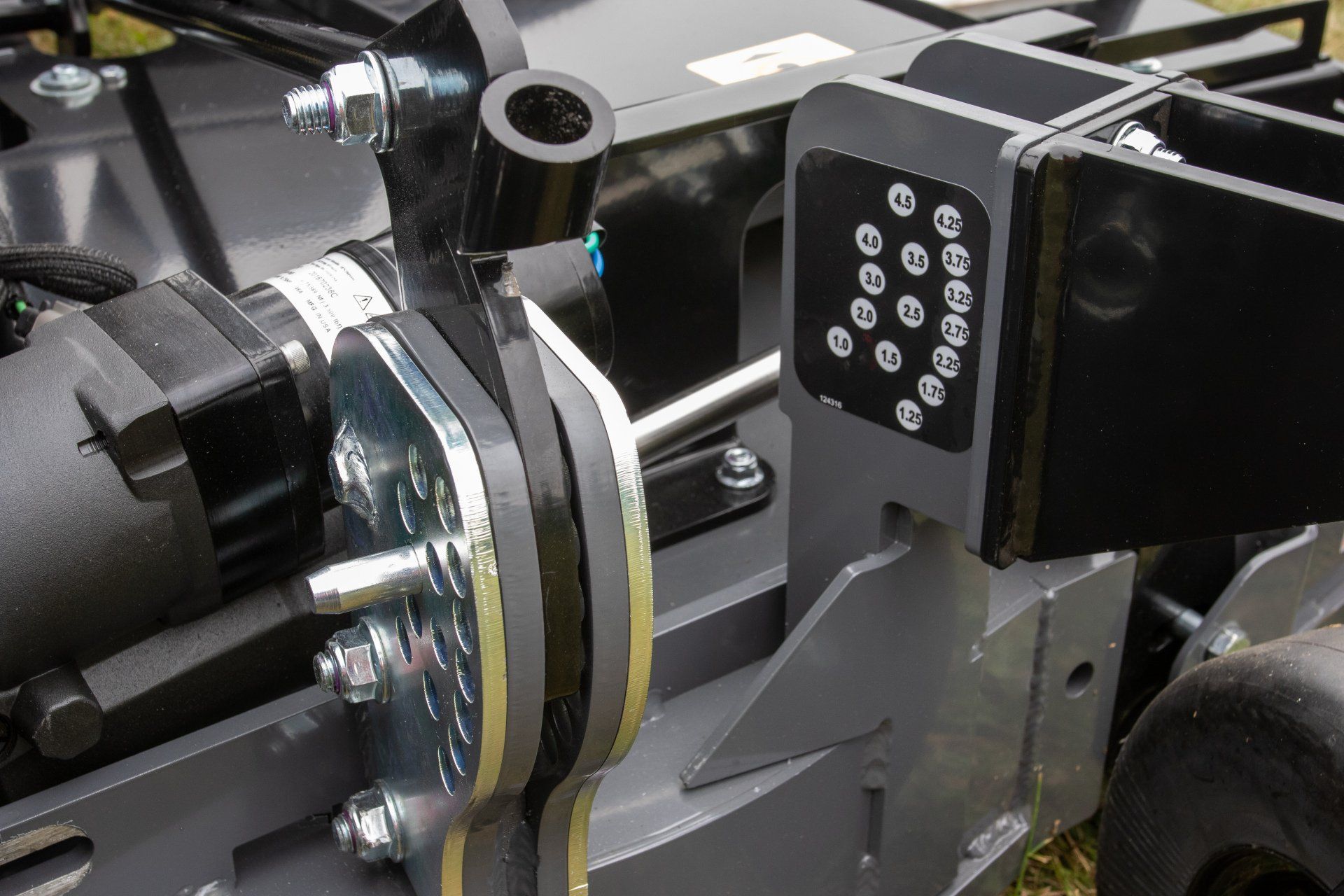

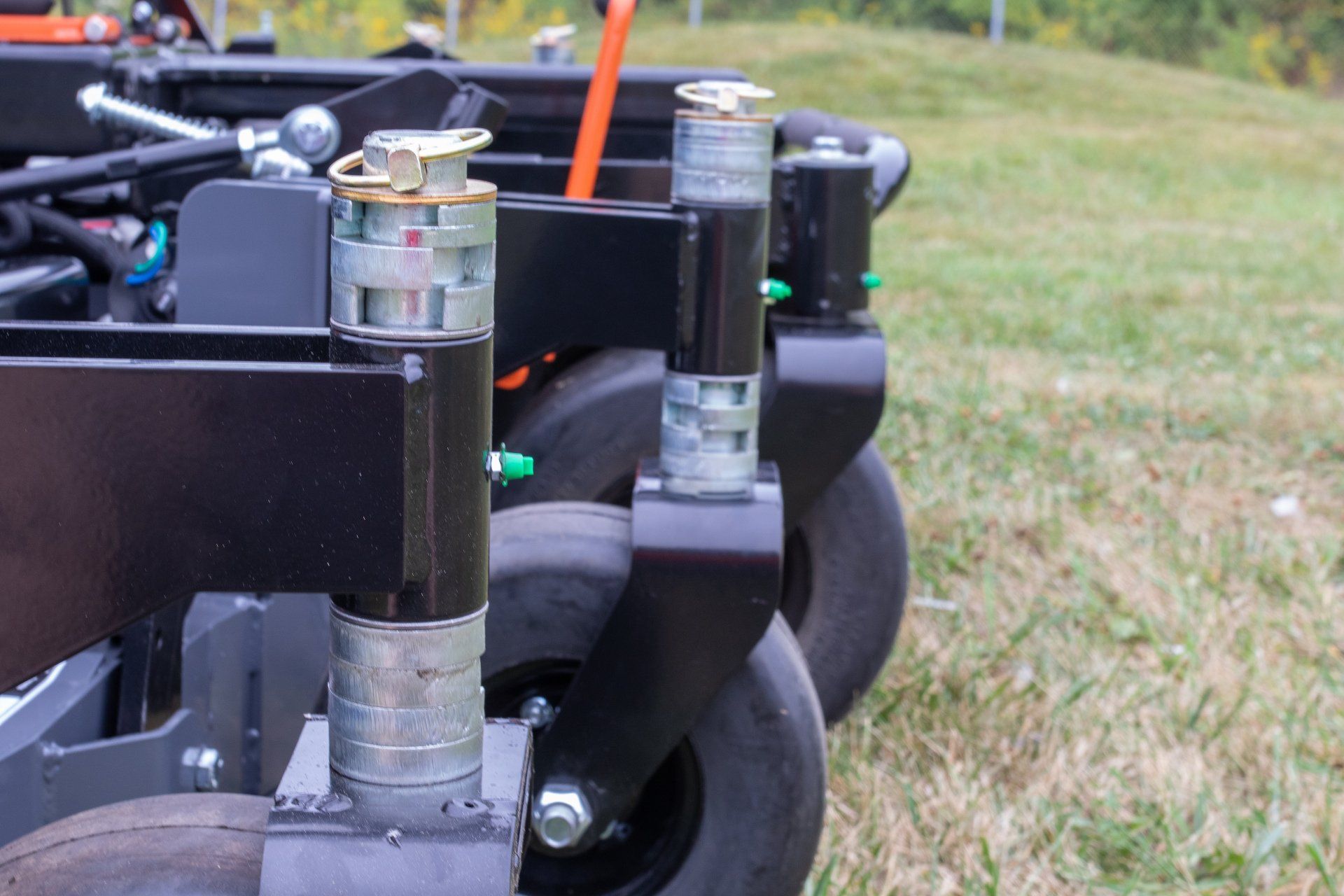

Height of Cut Range 1”-4-1/2” in ¼” increments

Height Adjustment Manual with spacers (9 adjustment points)

Acres per Hour 8.73 (assumes 10% overlap, no stops, and  average speed of 8 mph)

Transport Lift Type Two electric-over-hydraulic actuators

Deck Caster Wheels Eight 11 x 4-5, smooth, no-flat

Deck Thickness 3/16 7ga.

Deck Leading Edge 1/2"x1/4"

Blade Length 25" (63.5cm)

Articulation p/m 12 degrees

Height of Cut Change- Timing 5 min

Height of Cut Change- Tools required None

Height of Cut Change- Person's Required 1

# of Decks 5

Number of Grass chutes 1,3(rear)

Discharge Capability Side, Rear, Mulching

Bearing/Spindles 5

Pulleys(Cast or Split) Cast

Tires 10 (2 pneumatic)

Rows of fixed wheels 3

Hydraulic Cylinders 2

Hydraulic Connections 16

Hydraulic Manifold 0

Hydraulic Fluid Capacity 5 quarts

Pulleys 18

Blade Tip Speed 18,500 FPM (approximate)

Number of Belts 7

Size of Belts 6

3" Back-Bend Idlers 6

1/4 Turn Belt Twists 2

Spring Loaded Idlers 2

Grease Points 20

Steer/Stick Stick

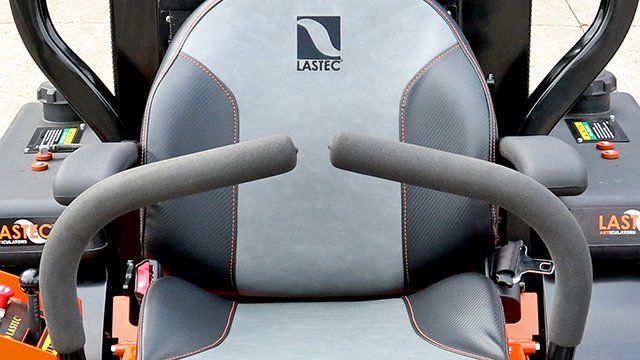

Seat (High-Back/Mid-BackDeluxe) High-Back, with Arm-rests

Seat Suspension Air-Ride

4WD/ 2WD 2WD

Belt or Hydro Drive Belt

Why Choose Lastec Mowers

Superior Accuracy
Several small 21” or 25” flexing decks include up to 24° of total up/down motion to minimize scalping and hug rolling terrain throughout the entire cutting width.
Lower Operating Costs
Patented low-maintenance belt-driven decks use up to 50% less fuel consumption compared to hydraulically driven rotary mowers.
Lastec Articulating Mower Deck Up
Lastec Articulating Mower Deck Flat
Lastec Articulating Mower Deck Down
Greater Productivity
Wide area mowers combined with zero turn maneuverability cut more grass with each pass while reducing costly work hours spent backtracking, string trimming, and push mowing.
Significant Cost Savings
Longer life, lower-maintenance, and reduced equipment costs means significant savings year after year.
