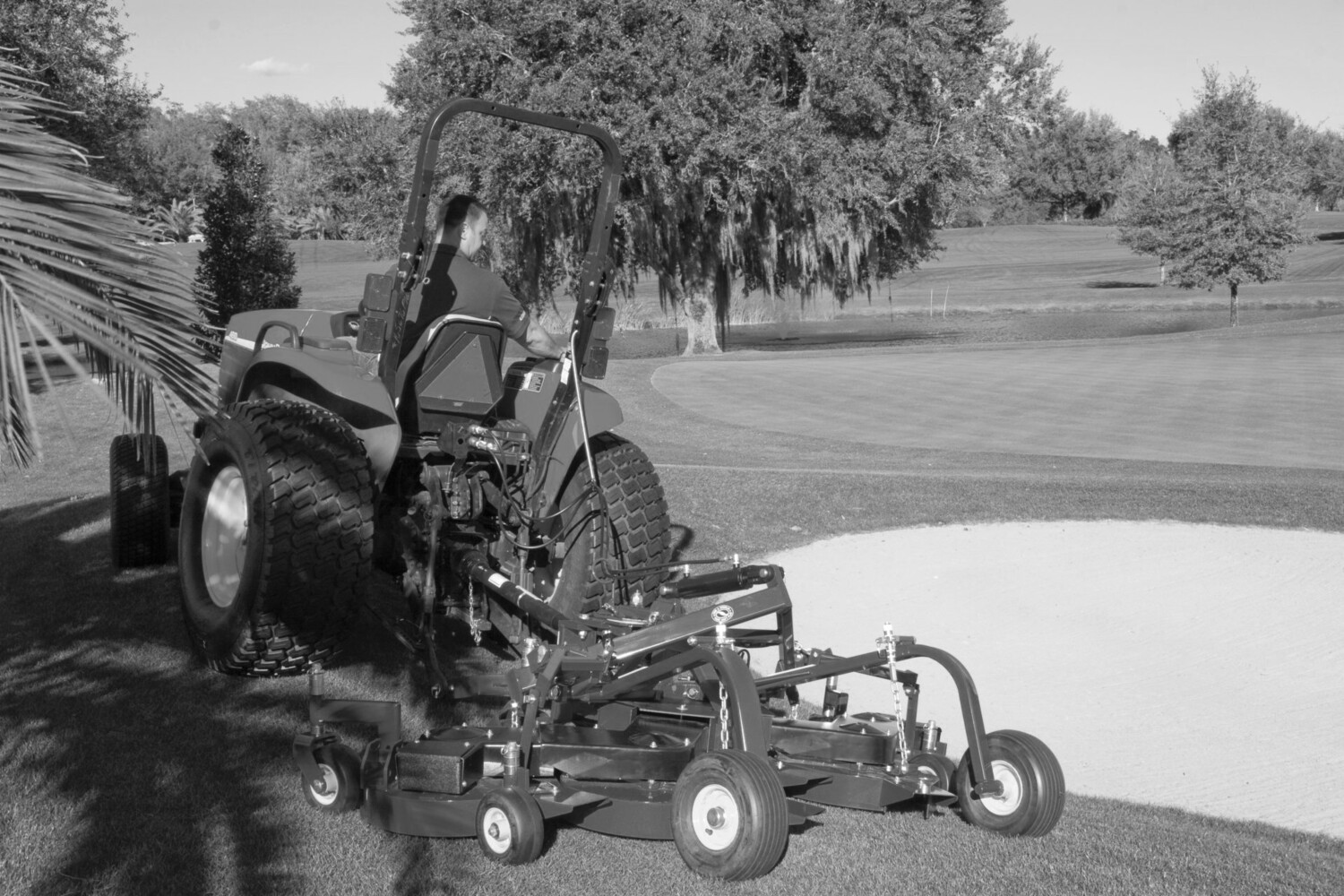

The Model XR500 96" is a five-deck version of the XR700. The XR500 offers a competitively priced option for mowing applications that are best suited to use an eight foot wide mowing deck. It can be used with a lighter weight, lower horsepower tractor than the XR700 and is perfect for golf course roughs that need a narrower cutting width to mow in tight areas around trees and other obstacles.
Tractor Requirements
Minimum 30 hp (22.37 kW) at the PTO
Drawbar Mount Requirements
Category 1, 3-point hitch
Cutting Width
96” (243.8 cm)
Deck Height Range
1” to 4 3/4” (25.4 mm - 120.65 mm)
Deck Configuration
Five 21” (533.4 mm) 4” (101.6 mm) deep, fully articulating
