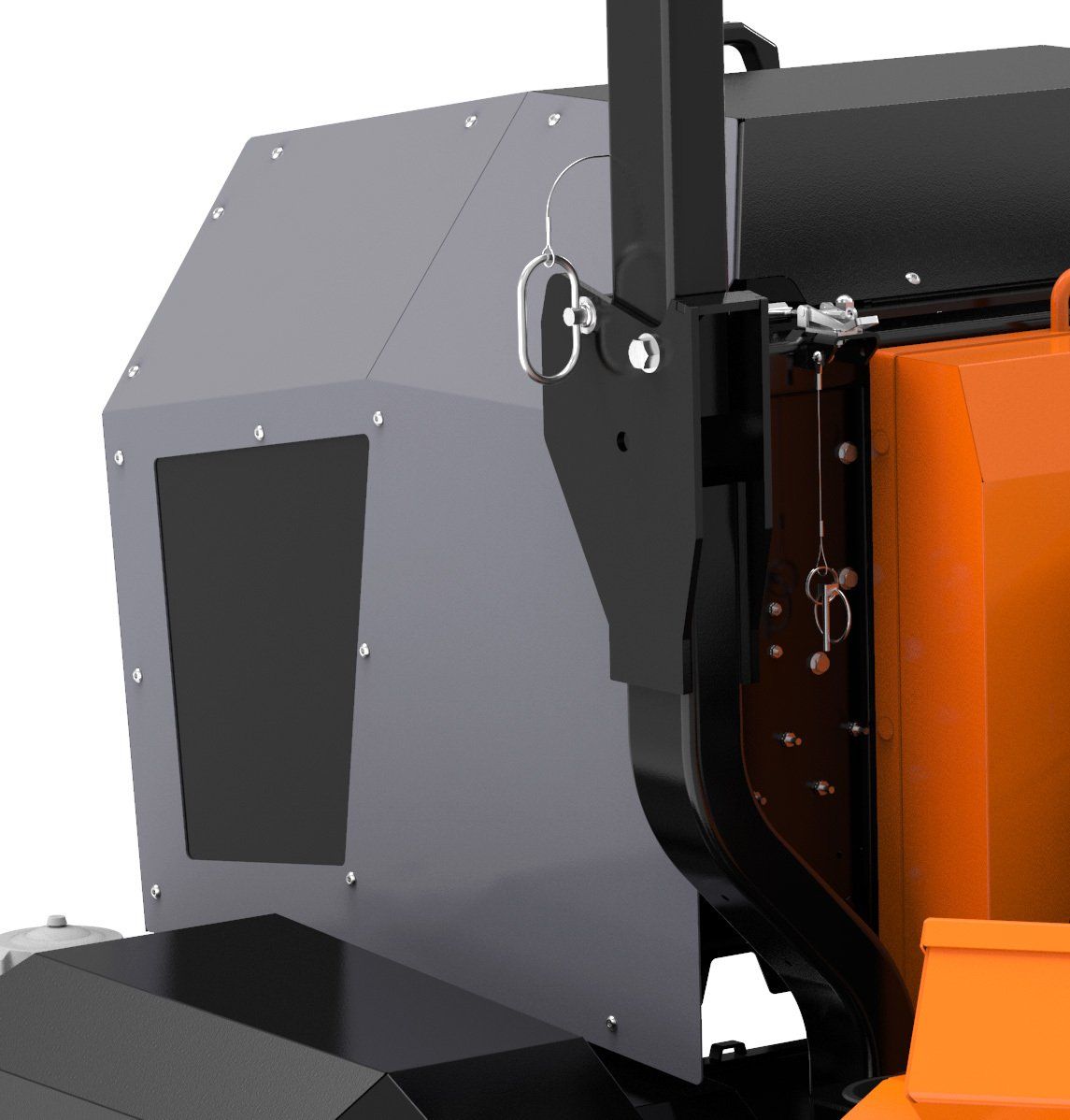

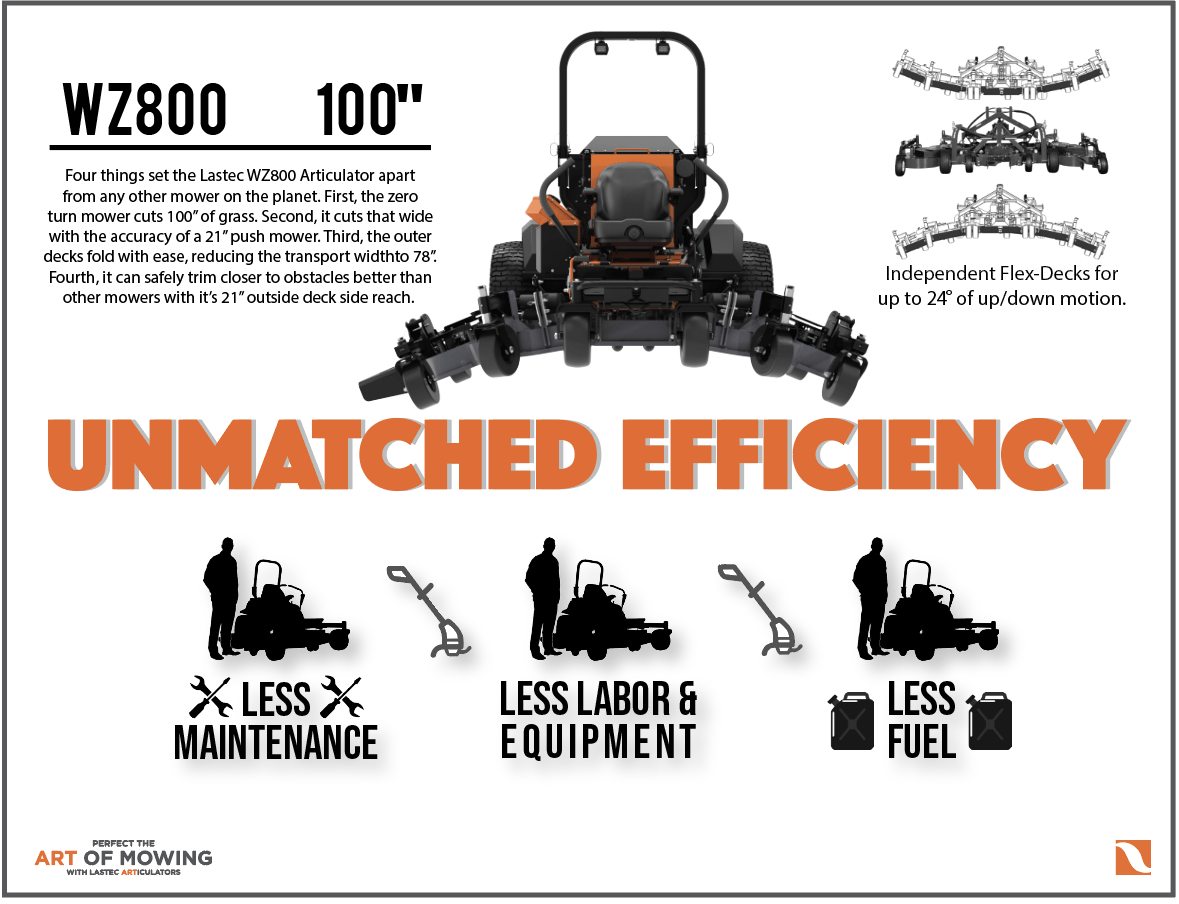

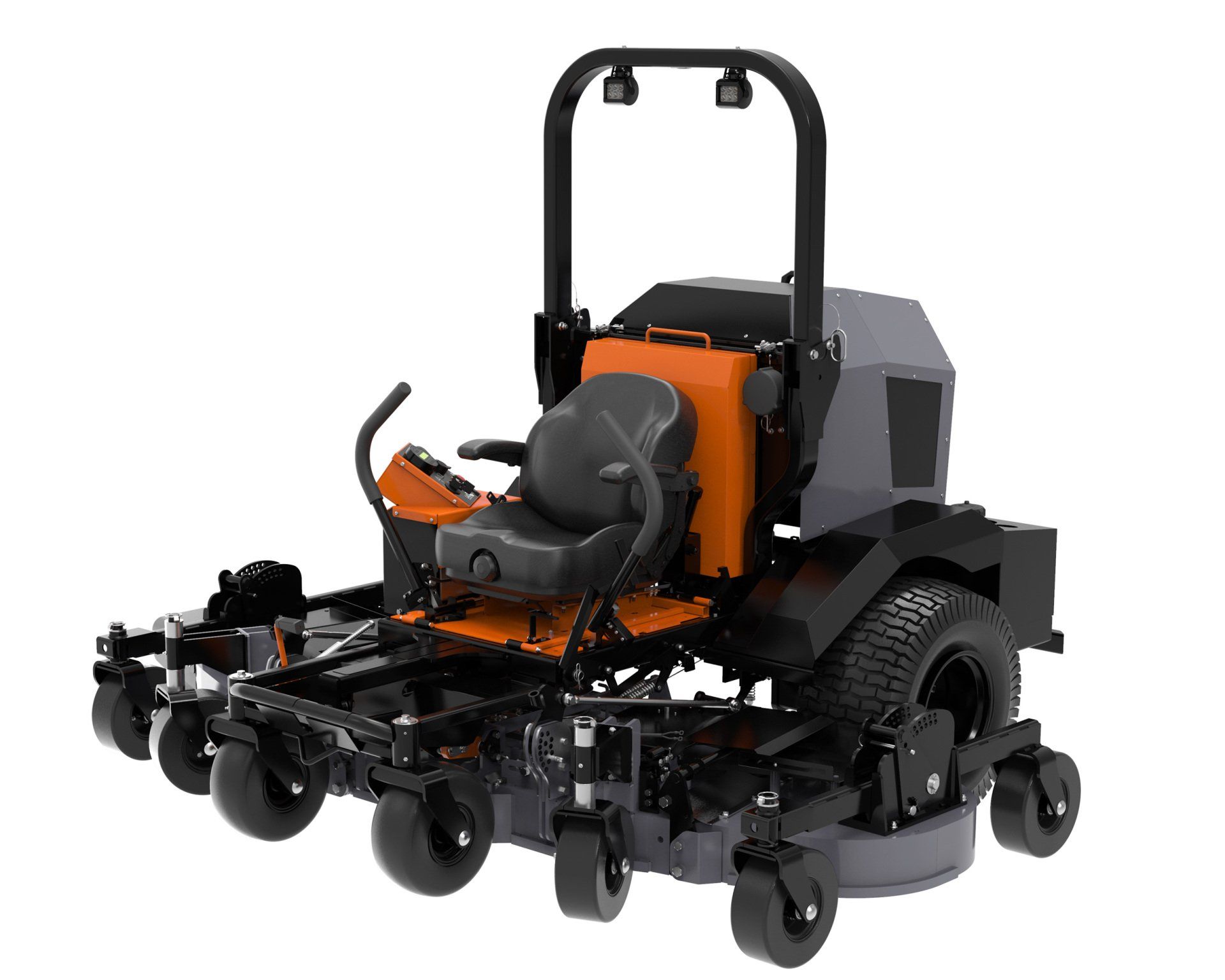

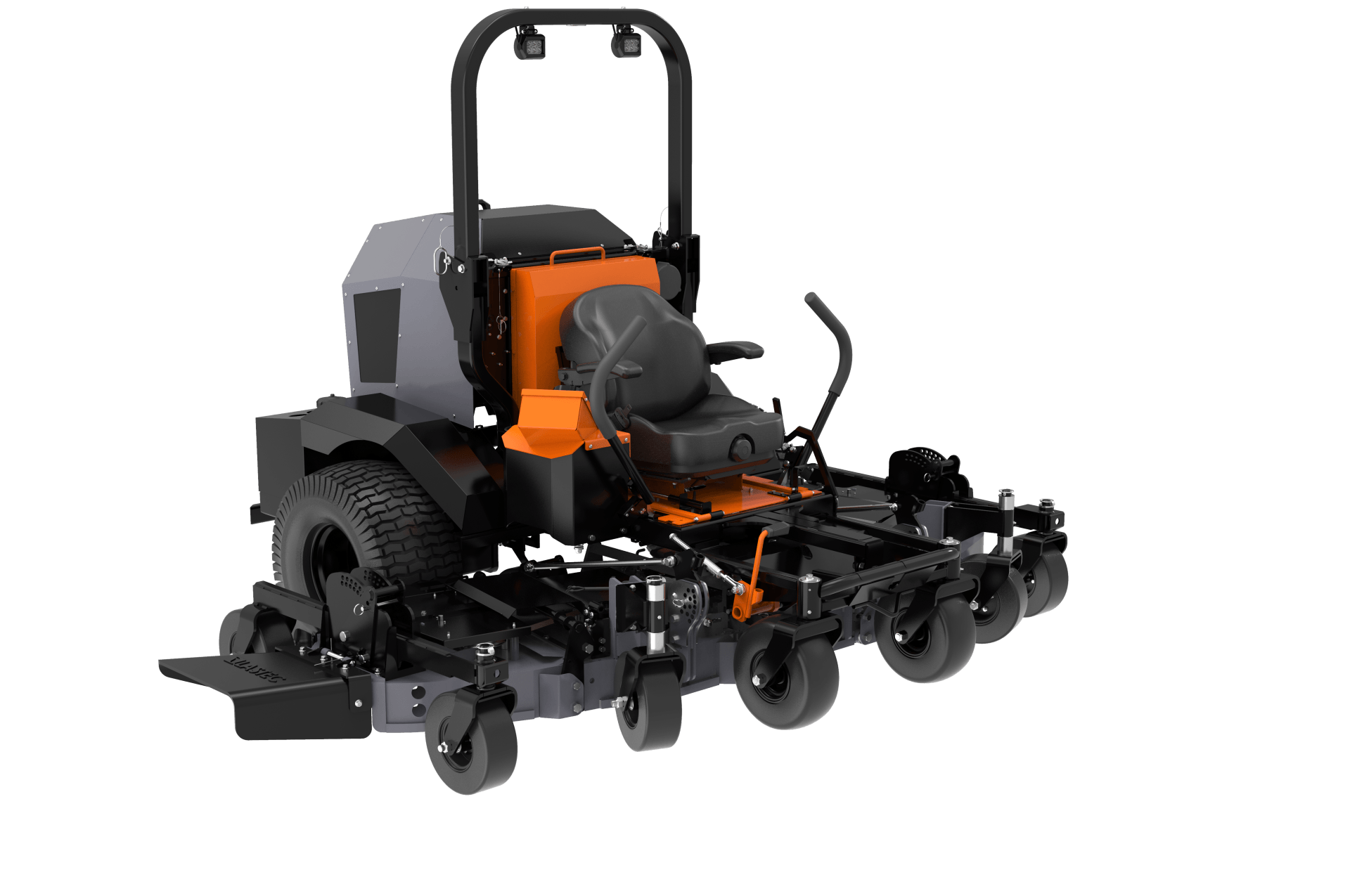

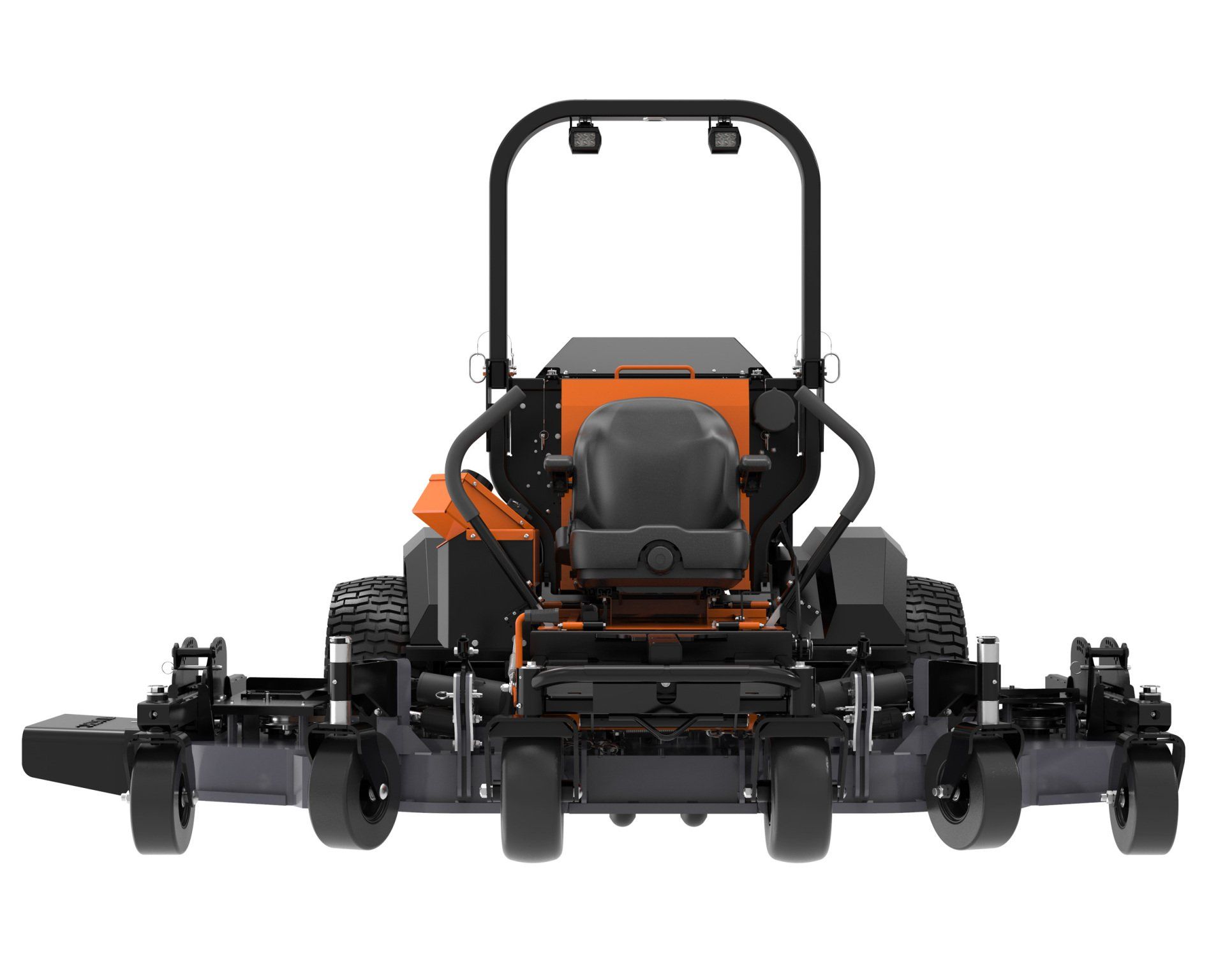

CUTTING DECK SYSTEM
Cut Width 100" (2.54m)
Cut Width (Feet) 8'4" (2.560m)
Discharge Options
Side, Rear, and Mulching Discharge Capabilities
Curb clearance in inches 4.5"
Blade Spindles 3- Cast Steel Spindle Assemblies, Utilizing 3 Sealed Bearings Each
Blades Five 21” High Lift
Belts Double Envelope Kevlar Main Drive & Deck Belts
Deck Segments 5- 21” decks with 5.5” deep , fully welded articulating pans
Deck Construction 3/16"x1/2" (4.76mmx127mm) Solid Steel Bar Leading Edge

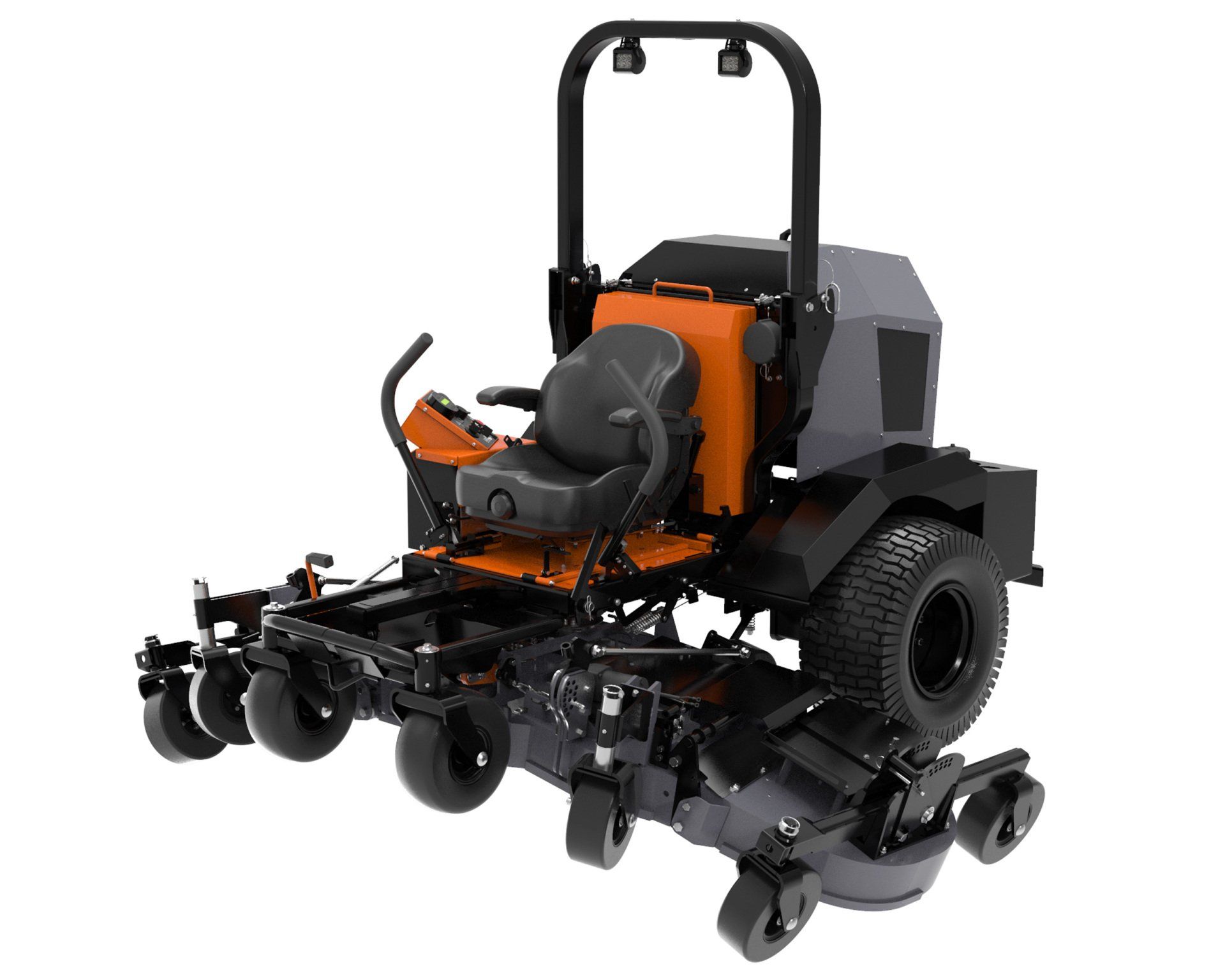

Height of Cut Range 1”-4-1/2” in ¼” increments

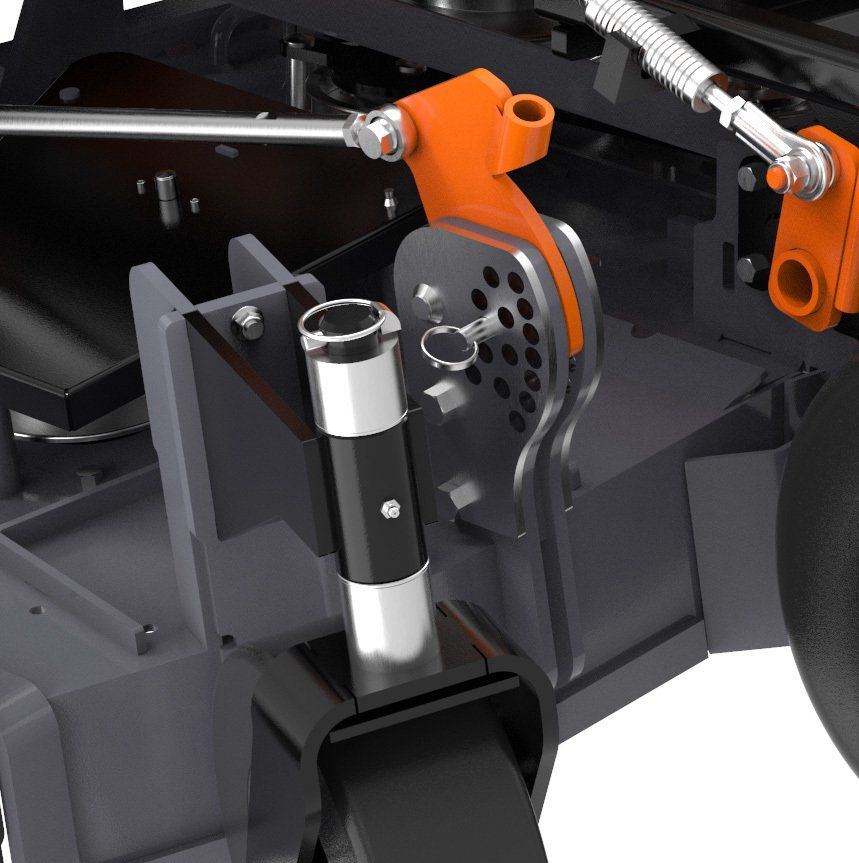

Height Adjustment Manual with spacers (9 adjustment points)
Acres per Hour 7.27 (assumes 10% overlap, no stops, and
average speed of 8 mph)

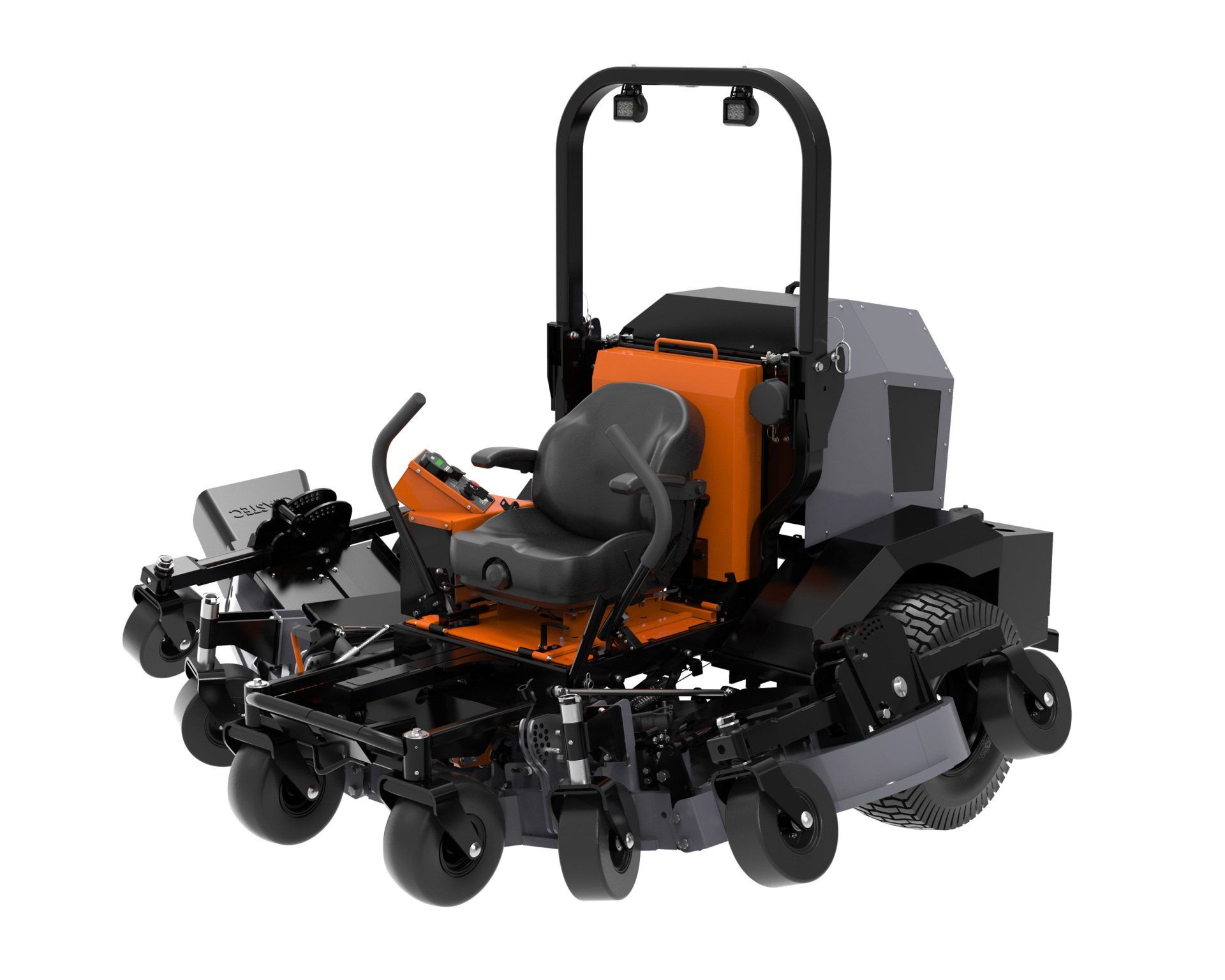

Transport Lift Type Electric-over-hydraulic actuators

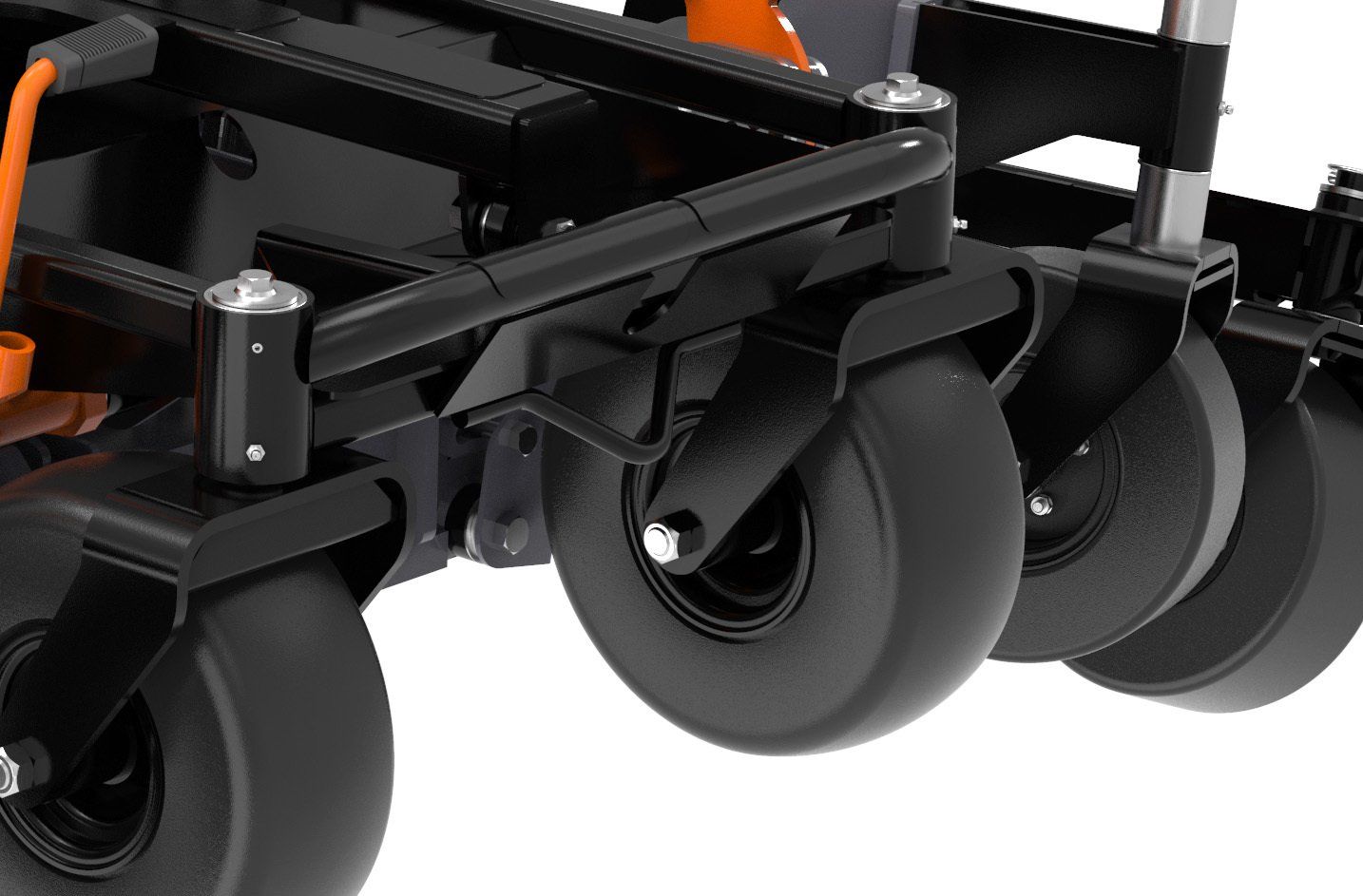

Deck Caster Wheels Eight 11 x 4-5, smooth, no-flat
Deck Thickness 3/16 7ga.
Deck Leading Edge 1/2"x1/4"
Blade Length
21" (53.3cm)

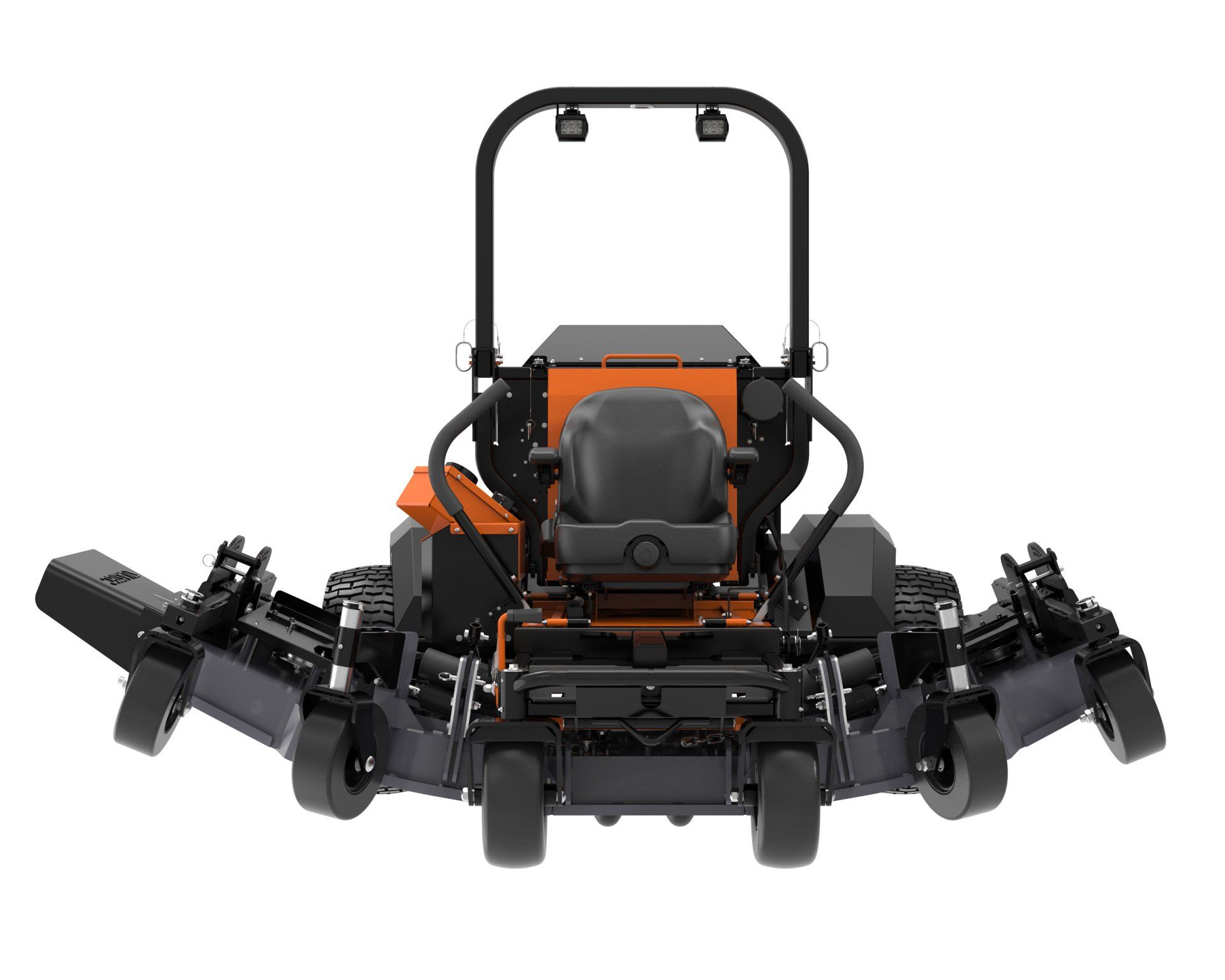

Articulation p/m 12 degrees
Height of Cut Change- Timing
5 min
Height of Cut Change- Tools required None
Height of Cut Change- Person's Required
1
# of Decks 4
Number of Grass chutes 1,3(rear)
Discharge Capability Side, Rear, Mulching
Bearing/Spindles 4
Pulleys(Cast or Split)
Cast

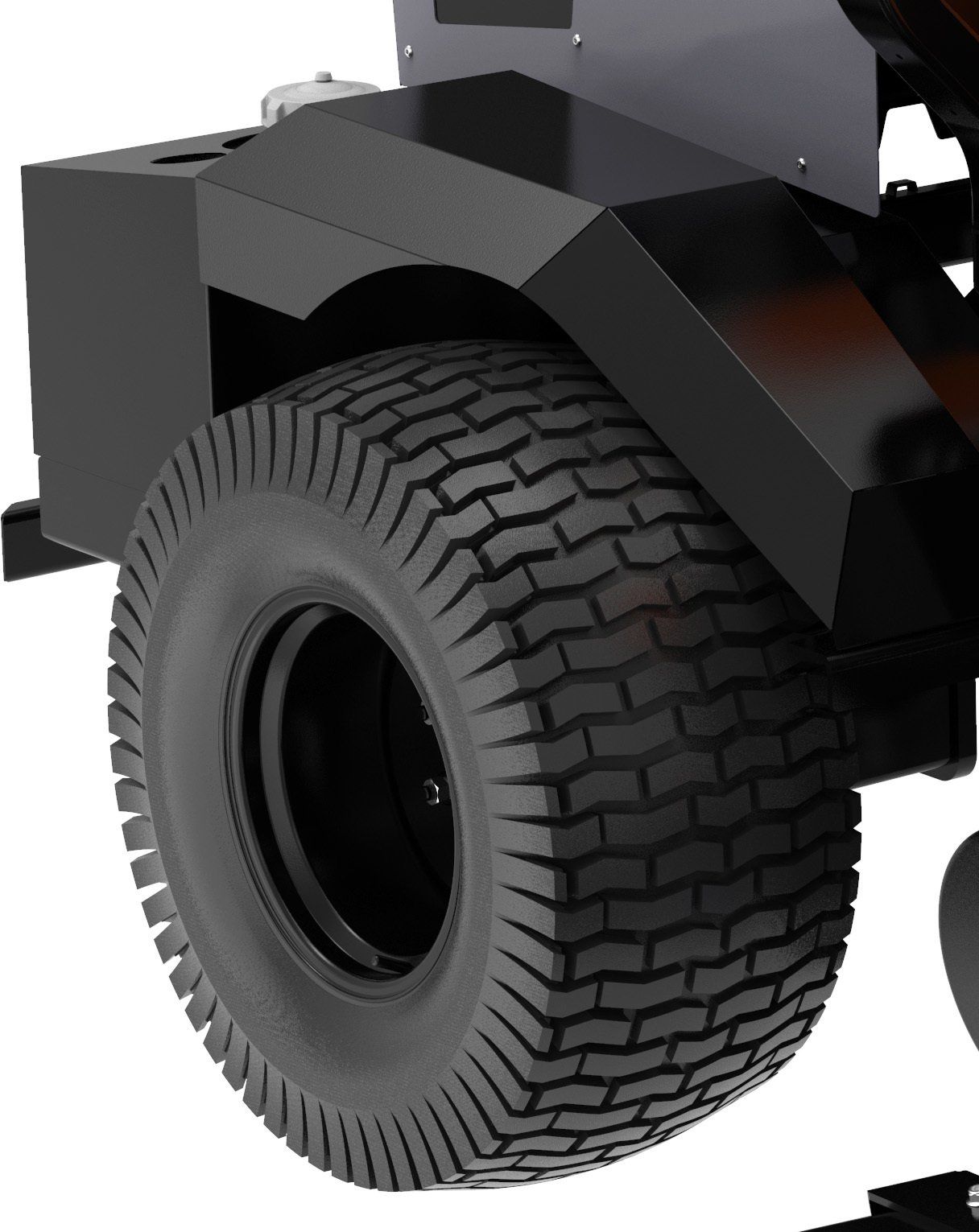

Tires
10 (2 pneumatic)
Rows of fixed wheels 3
Hydraulic Cylinders 2
Hydraulic Connections 16
Hydraulic Manifold
0
Hydraulic Fluid Capacity 5 quarts
Pulleys 14
Blade Tip Speed 18,500 FPM (approximate)
Number of Belts 5
Size of Belts 5
3" Back-Bend Idlers 4
1/4 Turn Belt Twists 2
Spring Loaded Idlers 1
Grease Points 20
Steer/Stick
Stick
Seat (High-Back/Mid-Back)
Deluxe High-Back, with Arm-rests
Seat Suspension Air-Ride
4WD/ 2WD 2WD
Belt or Hydro Drive Belt
