XR700 Pull Behind Mower

XR700 Pull Behind Finish Mower with 3 Point Hitch Mount

Starting at $27,899

Price may vary by dealer/location, does not include taxes, freight, or setup fees.


*Limited Quantity In Stock and Available for Immediate Shipment*


  132" Flex Deck Pull Behind Finish Mower with 3 Point Hitch Mount



  • 132" cutting width
  • Seven 21" flex decks with 360° of float and up to 24° of total up/down motion

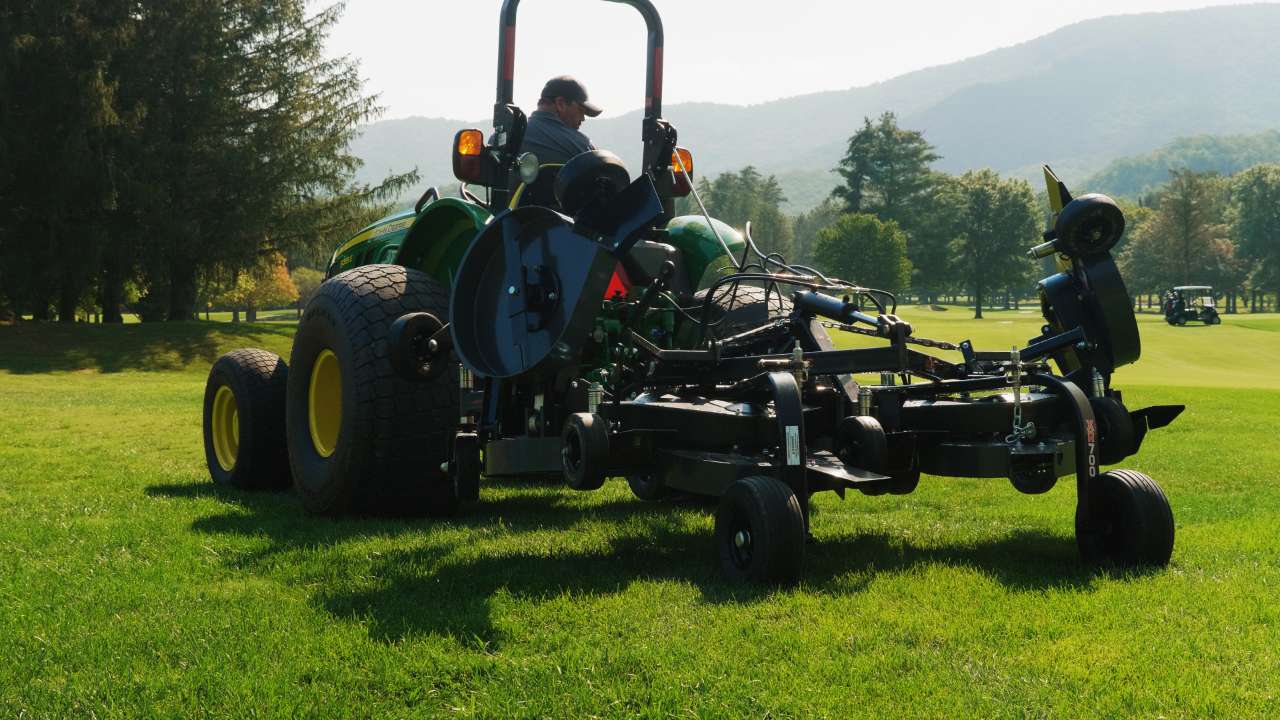

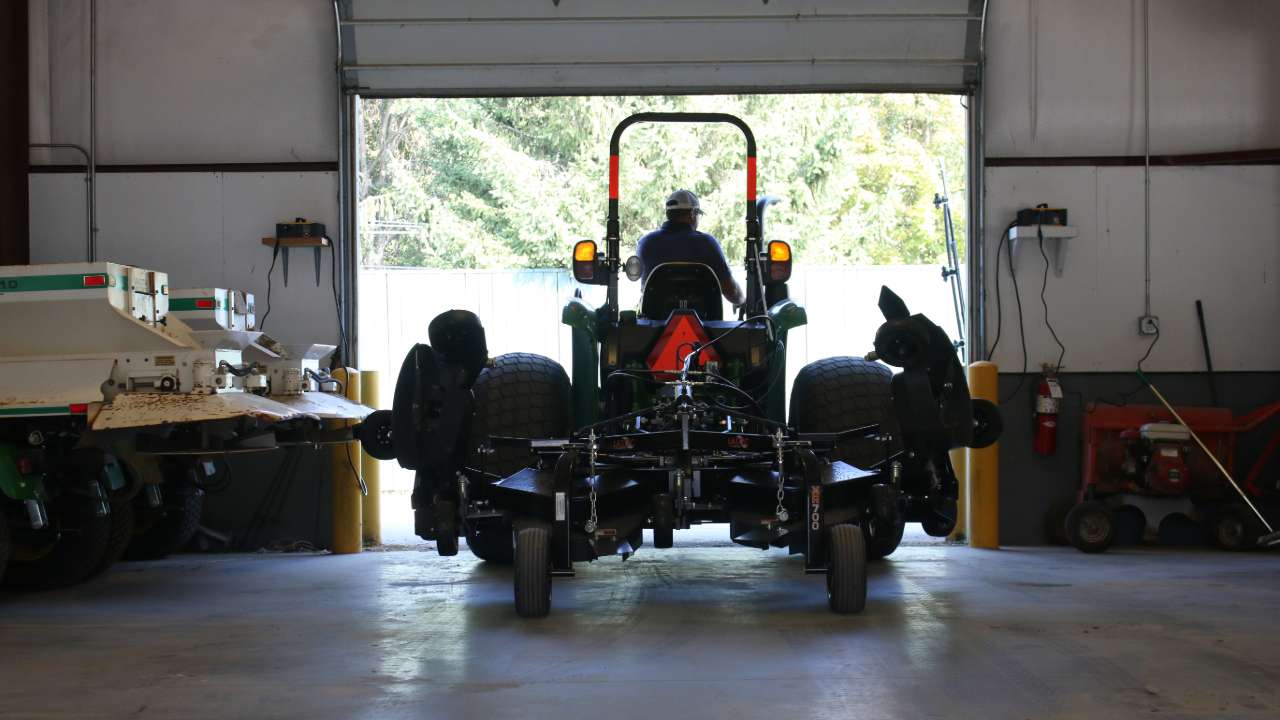

  • Quick-lift deck to 102" wide for easy transport, cleaning, and storage
  • No-tool deck height adjustment from 1-3/4" to 4-3/4"

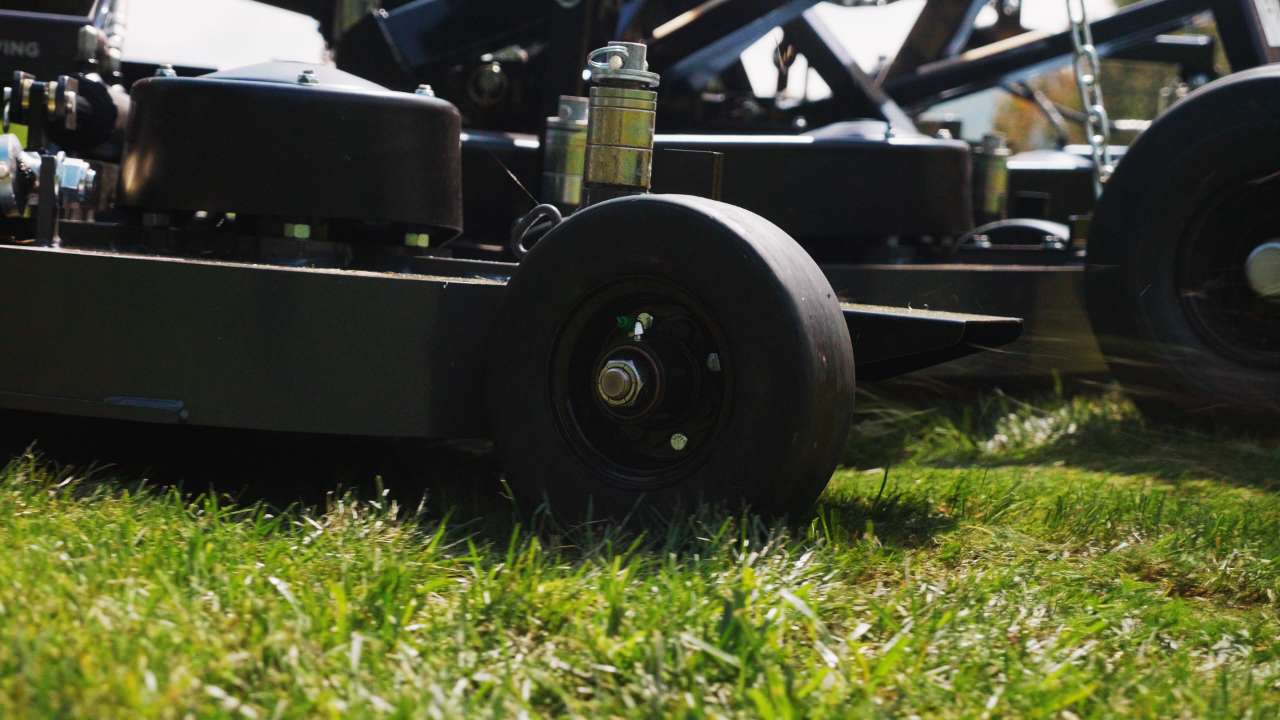

  • All Deck Wheels are Semi-Solid, to Eliminate Flat Tires
  • All decks are constructed from 7ga. 3/16” plate with 3/8” x 1/2” solid steel bar leading edges



Request Info Specs Easy Financing! No Payments for 90 Days Built in the USA Warranty Where to Buy
Overview
Combining a 132” width of cut with seven 21” flex decks, the XR700 finish mower cuts with the accuracy of seven small push mowers at the speed and production of an 11’ wide area mower. Built in the USA, the XR700 pull behind mower is tens of thousands of dollars less compared to a self-contained mower and fits the production needs of golf courses, sports turf professionals, and commercial landscapers.

The XR700 pull behind finish mower includes seven independently flexing decks with up to 24° of total up/down motion and 360° of float for superior cut quality in even the most challenging contours and valleys. In addition, Lastec’s patented belt-driven decks require minimal maintenance.

Perfect the Art of Mowing today with the XR700 finish mower that minimizes investment and maintenance while maximizing cut quality, productivity, and performance.

Premium Cut Quality
Lastec flexing decks provide a premium quality of cut throughout the entire width of cut from wing to wing not found anywhere else in the industry. Lastec individual flexing decks cut areas that normally require hand trimming, provide a lower cut without scalping, mow through trenches and valleys in a single pass, and approach contours from any angle without scalping, missing grass, or damaging turf.
Lastec Articulating Mower Deck Up
Lastec Articulating Mower Deck Flat
Lastec Articulating Mower Deck Down
Every Lastec mower features three, five, or seven 21” or 25” independently flexing decks that include up to 24° of total up/down motion for the premium cut quality of several small push mowers in even the most challenging contours and valleys. In addition, Lastec’s center decks include a pivot in the center capable of up to 3° of up/down motion.

Accessories

XR700 132" WIDTH OF CUT

029288 Mulch Baffle Kit (mulch blades not included)

P128 High-Lift Blade (Standard)

P322 Gator Mulching Blade

P246 Low-Lift Blade

063246 Ultra Low-Lift Blade

048898 Anti-Scalp Blade Disc

076894 Anti-Scalp Kit

Features
Specifications
Download Specs

Tractor Requirements:

Minimum 35 hp (26.1kW) at the PTO

Tractor PTO Speed:540 RPM

Transport Width: 102” (259.08 cm)

Deck Height Range:  1-3/4” to 4-3/4” (44.45 mm - 120.65 mm)

Deck Configuration:  Seven 21” (533.4 mm) 4” (101.6 mm) deep, fully articulating

Warranty: 2 year parts / 1 year labor


Dimensions

Weight:  1,250 lbs (566.9 kg)

Length 88" (2235.2mm)

Distance Behind Tractor 7.50" (2.286mm)

Width (mowing) 150" (3810mm)

Width (transport)102" (2590.8mm)

Unit weight 1,250lbs (566.9 kg)


Cutting Deck System


Cutting Width: 132” (335.28 cm)

Blades 21"

Deck Segments 7

Height of Cut Range 1-3/4" to 4-3/4" (44.45mm X 120.65 mm) Height Adjustment No tools required

Acres Per Hour 9.60 (assumes 10% overlap, no stops, and average speed of 8mph)

Transport Lift Type Hydraulic

Deck Castor Wheels 15 (No Flats)

Deck Thickness 3/16 7ga.

Deck Leading Edge 1/2"x1/4"

Blade Length 21" (53.3cm)

Articulation p/m 12 degrees

Height of Cut Change- Timing 10 min.

Height of Cut Change- Tools required None

Height of Cut Change- Person's Required 1

Min. Height of Cut 1-3/4" (44.45 mm)

Max Height of Cut 4-3/4" (120.65 mm)

# of Decks 7

Distance Behind Tractor 7-1/2"(2.286 mm)

Number of Grass chutes 7

Discharge Capability 0

Bearing/Spindles 7

Pulleys(Cast or Split) Cast Steel

Rows of fixed wheels 1

Hydraulic Cylinders 3

Hydraulic Connections 8

Hydraulic Manifold 0

Pulleys 8

Blades 7 CW

Number of Belts 8

Size of Belts 2

3" Back-Bend Idlers 0

1/4 Turn Belt Twists 0

Spring Loaded Idlers 1

PTO's 1

Carrier Bearings 0

Grease Points 56

Height When Raised 15" (381mm)


Why Choose Lastec Mowers

Superior Accuracy
Several small 21” or 25” flexing decks include up to 24° of total up/down motion to minimize scalping and hug rolling terrain throughout the entire cutting width.
Lower Operating Costs
Patented low-maintenance belt-driven decks use up to 50% less fuel consumption compared to hydraulically driven rotary mowers.
Lastec Articulating Mower Deck Up
Lastec Articulating Mower Deck Flat
Lastec Articulating Mower Deck Down
Greater Productivity
Wide area mowers combined with zero turn maneuverability cut more grass with each pass while reducing costly work hours spent backtracking, string trimming, and push mowing.
Significant Cost Savings
Longer life, lower-maintenance, and reduced equipment costs means significant savings year after year.
